AISI 904L Butt Weld Pipe Fittings

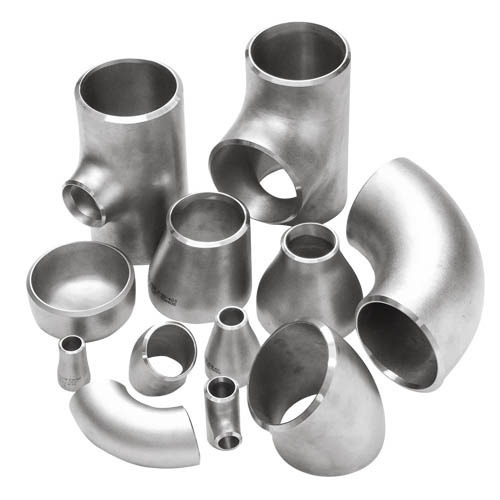

AISI 904L Butt-Weld Pipe Fittings covers a group of pipe fittings manufactured out of wrought and forged 904L materials. This includes 90 degree elbows, 45 degree elbows, 180 degree bends, concentric and eccentric reducers, straight and reducing tees, end caps and stub ends. As the name suggests this type of fittings range is usually welded to pipes or to each other at its butt with proper alignment tools and use of filler metal.
Anand Steels produces and supplies AISI 904L butt-weld pipe fittings in seamless, ERW, mitered joints or other welded construction. AISI 904L butt-weld pipe fittings are manufactured to ASTM A403 WP904L material specification and ANSI/ASME B16.9, B16.28, ISO 5251, BS 1640 and EN 10253 standards; heavy walled forged butt weld 904l pipe fittings are manufactured to ASTM A182/A182M F904L material specification. Stainless steel 904L butt-weld pipe fittings are duly marked for traceability. We offer worldwide shipping by Sea or Air freight options.
For more information on AISI 904L Butt-Weld Pipe Fittings, see below details.
- Sizes: 1/2” to 24” NPS (Seamless) up to 60” in ERW and Welded Construction.
- Wall Thickness: Schedule 5/10/20/40/60/80/100/120/160/5S/10S/40S/80S
- Ends: Bevelled End (BE), or Plain (PE)
- Construction: Seamless, ERW and Plate Fabricated.
- Dimensions & Tolerances;: ASME / ANSI , BS, EN, ISO
- Material Specifications: ASTM / ASME SA403 WP904L, ASTM A182 F904L / UNS N08904, Uranus® B6, X1-Ni-Cr-Mo-Cu-25-20-5, DIN/EN/Werkstoff Number 1.4539
- Origin: India, China, Taiwan, Korea, Japan, Sweden, Italy, France, Germany, UK & USA
Chemical Requirements for AISI 904L Butt Weld Pipe Fittings
| Elements | Composition, % |
|---|---|
| Carbon (C) | 0.02 Max |
| Manganese (Mn) | 2.00 Max |
| Phosphorus (P) | 0.04 Max |
| Sulfur (S) | 0.03 Max |
| Silicon (Si) | 1.00 Max |
| Chromium (Cr) | 19.00 – 23.00 Max |
| Nickel (Ni) | 23.00 – 28.00 Max |
| Molybdenum | 4.00 – 5.00 Max |
| Copper (Cu) | 1.00 – 2.00 Max |
| Nitrogen (N) | 0.10 Max |
Mechanical Requirements for AISI 904L Butt Weld Pipe Fittings
| Elements | Composition | |
|---|---|---|
| Tensile Strength, min ksi [MPa] | 71 [490] | |
| Yield Strength, min ksi [MPa] | 31 [215] | |
| Elongation in 2 inch or 50mm (or 4D), min % | Longitudinal | 35 |
| Transverse | 25 | |
Applications for AISI 904L Butt Weld Pipe Fittings
- Process equipment in chemical industry
- Petrochemical industry
- Bleaching equipment in the pulp and paper industry
- Flue gas cleaning
- Desalination
- Seawater handling
- Hydrometallurgy
- Food and beverage
- Pharmaceuticals
- Heat exchangers
