AISI 904L Forged Rings

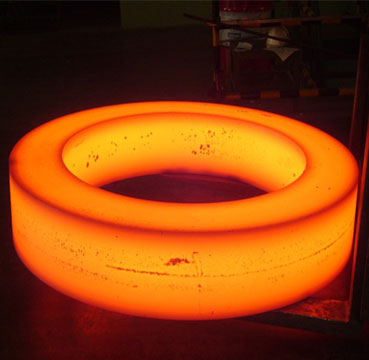

AISI 904L Forged Rings are hot forged and seamlessly rolled rings, further machined for use as a key component in wind mills, paper mills, engines and other extreme environments. AISI 904L forged and seamless rolled rings are stronger compared to other forms of formed metal and also being cost effective as to other means of manufacturing.
Anand Steels is a manufacturer and supplier of AISI 904L forged and seamless rolled rings. We can offer these 904L forged rings in variety of diameters and thickness in proof machined and finished sizes. These 904l forged rings are fully compliance to ASTM A182/A182M F904L material specifications. Stainless steel 904l forged rings are duly marked for traceability. We offer worldwide shipping by Sea or Air freight options.
For more information on AISI 904L Forged Rings, see below details.
- Sizes: 200mm to 3000mm Diameter
- Construction: Hot Forging & Seamless Ring Rolling
- Dimensions & Tolerances;: ASME / ANSI , BS, EN, ISO, GOST and DIN Standards
- Material Specifications: ASTM / ASME A182 F904L, Type 904L / UNS N08904, Uranus® B6, X1-Ni-Cr-Mo-Cu-25-20-5, DIN/EN/Werkstoff Number 1.4539
- Origin: India, China, Taiwan, Korea, Japan, Sweden, Italy, France, Germany, UK & USA
Chemical Requirements for AISI 904L Forged Rings
| Elements | Composition, % |
|---|---|
| Carbon (C) | 0.02 Max |
| Manganese (Mn) | 2.00 Max |
| Phosphorus (P) | 0.04 Max |
| Sulfur (S) | 0.03 Max |
| Silicon (Si) | 1.00 Max |
| Chromium (Cr) | 19.00 – 23.00 Max |
| Nickel (Ni) | 23.00 – 28.00 Max |
| Molybdenum | 4.00 – 5.00 Max |
| Copper (Cu) | 1.00 – 2.00 Max |
| Nitrogen (N) | 0.10 Max |
Mechanical Requirements for AISI 904L Forged Rings
| Elements | Composition | |
|---|---|---|
| Tensile Strength, min ksi [MPa] | 71 [490] | |
| Yield Strength, min ksi [MPa] | 31 [215] | |
| Elongation in 2 inch or 50mm (or 4D), min % | Longitudinal | 35 |
| Transverse | 25 | |
Applications for AISI 904L Forged Rings
- Process equipment in chemical industry
- Petrochemical industry
- Bleaching equipment in the pulp and paper industry
- Flue gas cleaning
- Desalination
- Seawater handling
- Hydrometallurgy
- Food and beverage
- Pharmaceuticals
- Heat exchangers
