AISI 904L Forged Plates

Forged Plates

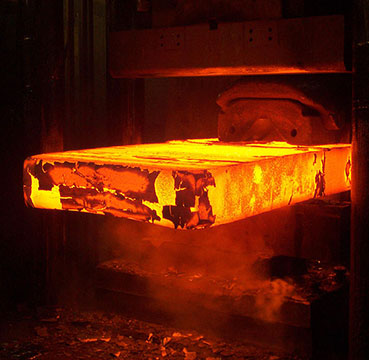

AISI 904L Forged Plates are fine grained semi-finished product used for making high strength components for various services. These AISI 904L forged plates can be machined or fabricated into finish products for use in high temperature or high pressure applications.

Anand Steels is a manufacturer and supplier of AISI 904L forged plates in variety of sizes and thickness. 904L forged plates are produced in full compliance with ASTM A182/A182M F904L material specifications. Stainless steel 904l forged plates are duly marked for traceability. We offer worldwide shipping by Sea or Air freight options.

For more information on AISI 904L Forged Plates, see below details.

  • Sizes: up to 1000mm x 1000mm & thickness up to 400mm.
  • Construction: Hot Forging
  • Dimensions & Tolerances;: ASME / ANSI , BS, EN, ISO, GOST and DIN Standards
  • Material Specifications: ASTM / ASME A182 F904L, Type 904L / UNS N08904, Uranus® B6, X1-Ni-Cr-Mo-Cu-25-20-5, DIN/EN/Werkstoff Number 1.4539
  • Origin: India, China, Taiwan, Korea, Japan, Sweden, Italy, France, Germany, UK & USA

Chemical Requirements for AISI 904L Forged Plates

Elements Composition, %
Carbon (C) 0.02 Max
Manganese (Mn) 2.00 Max
Phosphorus (P) 0.04 Max
Sulfur (S) 0.03 Max
Silicon (Si) 1.00 Max
Chromium (Cr) 19.00 – 23.00 Max
Nickel (Ni) 23.00 – 28.00 Max
Molybdenum 4.00 – 5.00 Max
Copper (Cu) 1.00 – 2.00 Max
Nitrogen (N) 0.10 Max

Mechanical Requirements for AISI 904L Forged Plates

Elements Composition
Tensile Strength, min ksi [MPa] 71 [490]
Yield Strength, min ksi [MPa] 31 [215]
Elongation in 2 inch or 50mm (or 4D), min % Longitudinal 35
Transverse 25

Applications for AISI 904L Forged Plates

  • Process equipment in chemical industry
  • Petrochemical industry
  • Bleaching equipment in the pulp and paper industry
  • Flue gas cleaning
  • Desalination
  • Seawater handling
  • Hydrometallurgy
  • Food and beverage
  • Pharmaceuticals
  • Heat exchangers
