AISI 904L Forged Fasteners

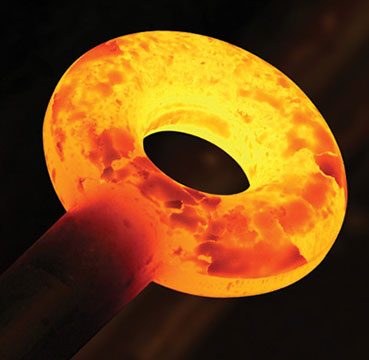

AISI 904L forged fasteners are high strength bolting components, manufacturer by means of hot forging and subsequent solution annealing, thus producing fine grain structure and material integrity. The product range includes AISI 904L forged hex bolts, eye bolts, screws, studs, hex nuts, and other parts.
Anand Steels is a manufacturer and supplier of AISI 904L forged fasteners in variety of head types, drive types, sizes, threads and lengths. These 904l forged fasteners are fully compliance to ASTM A182/A182M F904L material specifications. Stainless steel 904l forged fasteners are duly marked for traceability. We offer worldwide shipping by Sea or Air freight options.
For more information on AISI 904L Forged Fasteners, see below details.
- Sizes: M1 up to M180; #1 to 8” in Diameter
- Construction: Hot Forging
- Dimensions & Tolerances;: DIN, ISO, ANSI/ASME, UNI, PN, CSN, IFI, BS & BIS.
- Material Specifications: ASTM / ASME A182 F904L, Type 904L / UNS N08904, Uranus® B6, X1-Ni-Cr-Mo-Cu-25-20-5, DIN/EN/Werkstoff Number 1.4539
- Origin: India, China, Taiwan, Korea, Japan, Sweden, Italy, France, Germany, UK & USA
Chemical Requirements for AISI 904L Forged Fasteners
| Elements | Composition, % |
|---|---|
| Carbon (C) | 0.02 Max |
| Manganese (Mn) | 2.00 Max |
| Phosphorus (P) | 0.04 Max |
| Sulfur (S) | 0.03 Max |
| Silicon (Si) | 1.00 Max |
| Chromium (Cr) | 19.00 – 23.00 Max |
| Nickel (Ni) | 23.00 – 28.00 Max |
| Molybdenum | 4.00 – 5.00 Max |
| Copper (Cu) | 1.00 – 2.00 Max |
| Nitrogen (N) | 0.10 Max |
Mechanical Requirements for AISI 904L Forged Fasteners
| Elements | Composition | |
|---|---|---|
| Tensile Strength, min ksi [MPa] | 71 [490] | |
| Yield Strength, min ksi [MPa] | 31 [215] | |
| Elongation in 2 inch or 50mm (or 4D), min % | Longitudinal | 35 |
| Transverse | 25 | |
Applications for AISI 904L Forged Fasteners
- Process equipment in chemical industry
- Petrochemical industry
- Bleaching equipment in the pulp and paper industry
- Flue gas cleaning
- Desalination
- Seawater handling
- Hydrometallurgy
- Food and beverage
- Pharmaceuticals
- Heat exchangers
