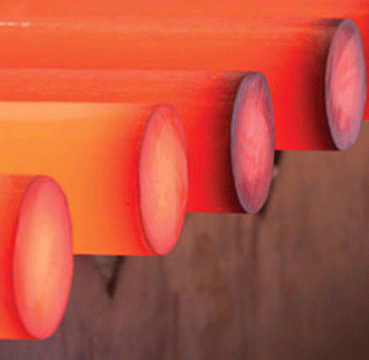

AISI 904L Forged Bars

Forged Bars

AISI 904L Forged Bars can be used are starting material for manufacturer of fittings, flanges, valve bodies, strainers, and high pressure containing components. These AISI 904L forged parts have finer grain structure and high integrity in containing high pressure that are suitable for wide range of services.

Anand Steels is a manufacturer and supplier of AISI 904L forged bars and rods in variety of diameters and length with customization. These 904l forged bars are fully compliance to ASTM A182/A182M F904L material specifications. Stainless steel 904l forgings are duly marked for traceability. We offer worldwide shipping by Sea or Air freight options.

For more information on AISI 904L Forged Bars, see below details.

  • Sizes: 10mm to 600mm in Diameter
  • Construction: Hot Forging
  • Dimensions & Tolerances;: ASME / ANSI , BS, EN, ISO, GOST and DIN Standards
  • Material Specifications: ASTM / ASME A182 F904L, Type 904L / UNS N08904, Uranus® B6, X1-Ni-Cr-Mo-Cu-25-20-5, DIN/EN/Werkstoff Number 1.4539
  • Origin: India, China, Taiwan, Korea, Japan, Sweden, Italy, France, Germany, UK & USA

Chemical Requirements for AISI 904L Forged Bars

Elements Composition, %
Carbon (C) 0.02 Max
Manganese (Mn) 2.00 Max
Phosphorus (P) 0.04 Max
Sulfur (S) 0.03 Max
Silicon (Si) 1.00 Max
Chromium (Cr) 19.00 – 23.00 Max
Nickel (Ni) 23.00 – 28.00 Max
Molybdenum 4.00 – 5.00 Max
Copper (Cu) 1.00 – 2.00 Max
Nitrogen (N) 0.10 Max

Mechanical Requirements for AISI 904L Forged Bars

Elements Composition
Tensile Strength, min ksi [MPa] 71 [490]
Yield Strength, min ksi [MPa] 31 [215]
Elongation in 2 inch or 50mm (or 4D), min % Longitudinal 35
Transverse 25

Applications for AISI 904L Forged Bars

  • Process equipment in chemical industry
  • Petrochemical industry
  • Bleaching equipment in the pulp and paper industry
  • Flue gas cleaning
  • Desalination
  • Seawater handling
  • Hydrometallurgy
  • Food and beverage
  • Pharmaceuticals
  • Heat exchangers
