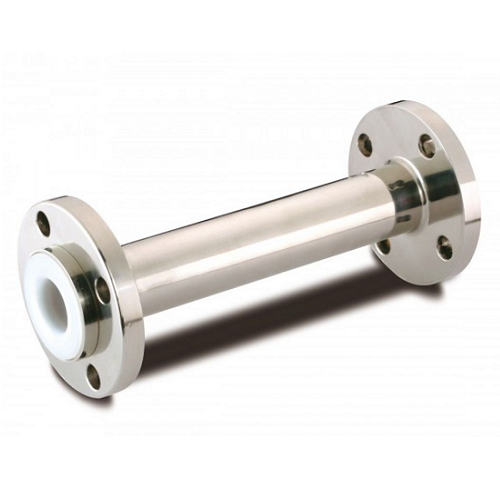

AISI 904L Pipe Spools
SS 904L Pipe Spools are pre-welded flanged end pipes or fittings; ready for bolting and reducing the overall time frame for piping installation. 904L SS spools are fabricated using prime seamless or welded pipes welded with forged or plate machined flanges. 904L stainless steel spools are available from 3/8” NPS thru 24” NPS with different pressure class rated flanges.
Anand Steels is a manufacturer and supplier of SS 904L pipe and fittings spools; produced, tested and certified as required. We offer worldwide shipping by Sea or Air freight options.
For more information on SS 904L Pipe Spools, see below details.
- Category: Pipe Spools or Fittings Spool
- Construction: Pipe (Seamless or Welded); Flanged (Forged or Plate Machined)
- Material Specifications: ASTM A182/A182M F904L, A240/A240M Type 904L / UNS N08904, Uranus® B6, X1-Ni-Cr-Mo-Cu-25-20-5, DIN/EN/Werkstoff Number 1.4539
- Origin: India, China, Taiwan, Korea, Japan, Sweden, Italy, France, Germany, UK & USA
Chemical Requirements for AISI 904L Pipe Spools
| Elements | Composition, % |
|---|---|
| Carbon (C) | 0.02 Max |
| Manganese (Mn) | 2.00 Max |
| Phosphorus (P) | 0.04 Max |
| Sulfur (S) | 0.03 Max |
| Silicon (Si) | 1.00 Max |
| Chromium (Cr) | 19.00 – 23.00 Max |
| Nickel (Ni) | 23.00 – 28.00 Max |
| Molybdenum | 4.00 – 5.00 Max |
| Copper (Cu) | 1.00 – 2.00 Max |
| Nitrogen (N) | 0.10 Max |
Mechanical Requirements for AISI 904L Pipe Spools
| Elements | Composition | |
|---|---|---|
| Tensile Strength, min ksi [MPa] | 71 [490] | |
| Yield Strength, min ksi [MPa] | 31 [215] | |
| Elongation in 2 inch or 50mm (or 4D), min % | Longitudinal | 35 |
| Transverse | 25 | |
Applications for AISI 904L Pipe Spools
- Process equipment in chemical industry
- Petrochemical industry
- Bleaching equipment in the pulp and paper industry
- Flue gas cleaning
- Desalination
- Seawater handling
- Hydrometallurgy
- Food and beverage
- Pharmaceuticals
- Heat exchangers
